When Ditch Witch® needed to acoustically treat their training room, they had a big and bold idea – take a cool promo photo and use that to make a Silent Pictures® mosaic! The required scale made it easier to break up the photo into a 3’x3′ matrix, which also eased the shipping and installation process! The final product (at over 9 feet tall and 15 feet wide) is imposing, and while it isn’t quite life-sized, the impact is indeed massive!
“Thank you so much for all the help you and your team did on this project. Our training room is complete now.Ditch Witch Midwest
We are over the moon happy.”
“A panel mounted to the wall is a panel mounted to the wall… right?”
This isn’t entirely accurate, and we are going to focus this installment on the often misunderstood Stand off clip.
What makes the Stand off clip different is that it doesn’t hold the panel flush to the wall, but it leaves a gap between the wall and the panel.
Why would you want this?
There are a few very important reasons, both acoustic and aesthetic.
Sound travels around all exposed surfaces, and by raising the panel off the wall, you expose the back surface to sound, more like a baffle, which is a great absorber. Also, sound will pass through a panel into the space behind, bounce off the wall, and then have to pass through the panel again. This transition from panel to air and back changes the medium sound must travel through – this effectively changes impedance, which strips energy from sound. These are just a couple of the acoustic benefits of using a standoff clip – there are others.
Wall mounted Sonora® panels take on a whole new dimension when using Stand off clips – they appear to float in mid air a couple of inches off the wall. This alone adds visual interest to a standard panel, but it can then be further accented by back-lighting the panel – changing the simple panel into a focal point in the lighting scheme.

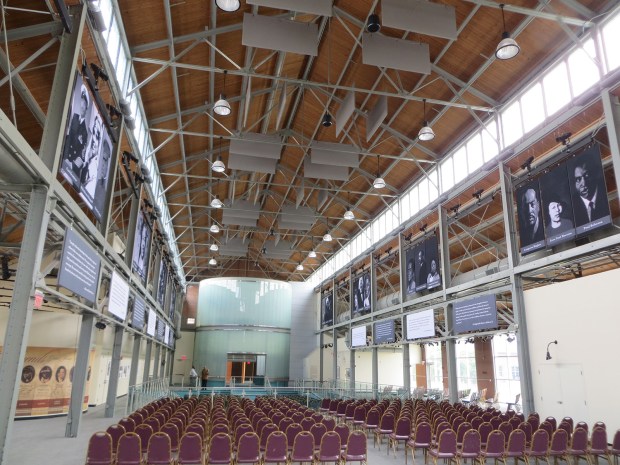

When Acoustics First® was approached with the ideas for the Main Hall of the Kentucky Center for African American Heritage (KCAAH), they needed acoustic materials that would not only work to acoustically tame the large space, but to have some be the focal point for attention – while others needed to blend in.
Aukram Burton of KCAAH wanted to have large portraits of civil rights icons, not only nationally, but paying particular attention to leaders with a connection to Kentucky. He also wanted to have large panels with quotes from these figures. These would be a custom printed Silent Pictures®/Sonora® Baffle Hybrid – with a 1″ Custom printed Silent Pictures® panel on one side, and a grey fabric wrapped Sonora® Baffle on the back. These would maximize sound absorption due to all of the surfaces being exposed to sound – while being aesthetically significant to the space. Their sheer size presented some technical challenges – with the portraits being 4′ x 8′ and the quotes being 4′ x 10′ – creating custom artwork on this scale required many technical consultations, as many photographs were not easily scaled to this size.
They did not want the other treatments to distract from the portraits, so they chose to install large Cloudscape® Baffles in a gray material that closely matched the gray color scheme of the support beams, trusses, and HVAC elements that are exposed and prevalent in the hall. This allowed the large 4′ x 8′ baffles to blend into the background, while still taming the acoustics of the large hall. The acoustics make the hall feel like a much more intimate venue than its imposing size suggests.
To get the full effect of the visual impact of the space, Aukram sent over a video tour of the facility.
Sometimes at Acoustics First we get a call from someone who is so knowledgeable that we can’t help but be tickled that they called us to help them. We received one such phone call from Pete Heskin at Barrett’s Technology Solutions in Naperville, IL.
Pete and his team were putting together an acoustic treatment for a listening room at their facility and wanted the room’s acoustics to really showcase their lineup of high-end audiophile speakers. No joke here – these guys have over 50 years of experience in the audio industry – and they keep on the bleeding edge of audio and video. This treatment is serious acoustic business – and these are some of the most discriminating ears in audio.
Happy Easter guys!
In keeping with their high-standards and cutting edge approach, they were looking for an acoustic treatment that is as visually stunning as it is capable of treating a room containing some of the world’s greatest sound sources. As you can see, the results are simple and elegant.
The room contains an array of Sonora® panels, Silent Pictures® and clusters of ArtDiffusor® Model D‘s to make this space sound as good as it looks. (While all of their gear makes the gear junkies at Acoustics First drool…)
So, if you find yourself near Chicago, or on a “Wayne’s World” pilgrimage, stop into Barrett’s – and if you fancy yourself an audiophile – put your money where your ears are, and hear how discriminating ears listen to music…
… No Stairway to Heaven.
